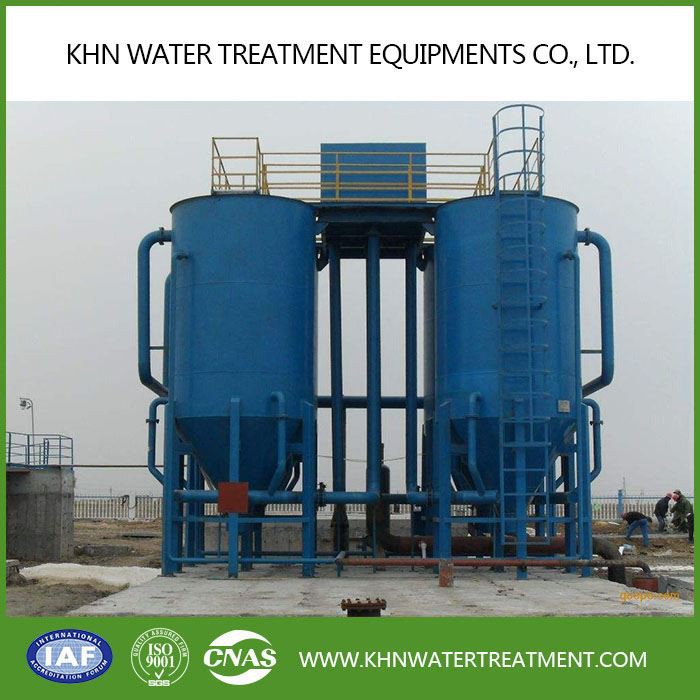

Sand Filter Contiflow
Continuous sand filter is a kind of filter which integrates coagulation, clarification and filtration. Based on the counter-flow principle, the raw water enters the filter through the water inlet pipe through the water distributor at the bottom.
Send InquirySand filter contiflow Introduction
The water flows from the bottom upwards through the sand filter bed. The filtered liquid after sand filtration collects at the top of the filter and flows out through the overflow port. The contaminated filter material at the bottom of the filter is lifted to the sand washer at the top of the filter by compressed air, and the contaminants are separated from the continuous flow sand by turbulent action.
Parameter table
Model | Filter area （m²) | filter layer Depth （m) | Volume (m2/h) | Diameter (mm) | Wastewater discharge (%) | Equipment height (mm) | Maximum air consumption m³/h（0.4MPa) |
KCS-05 | 0.5 | 1.5-2.0 | 3～5 | 800 | 5-10 | 3500～4000 | 2 |
KCS-10 | 1 | 1.5-2.0 | 5～10 | 1150 | 5-10 | 4300～4800 | 2.5 |
KCS-15 | 1.5 | 1.5-2.0 | 10～15 | 1400 | 5-10 | 4600～5100 | 3 |
KCS-20 | 2 | 1.5-2.0 | 15～20 | 1600 | 5-10 | 5000～5500 | 4 |
KCS-30 | 3 | 1.5-2.0 | 20～30 | 2000 | 5-10 | 5400～5900 | 6 |
KCS-40 | 4 | 1.5-2.0 | 30～40 | 2260 | 5-10 | 5800～6300 | 8 |
KCS-55 | 5.5 | 1.5-2.0 | 40～55 | 2650 | 5-10 | 6200～6700 | 10 |
KCS-60 | 6 | 1.5-2.0 | 55～60 | 2770 | 5-10 | 6500～7000 | 12 |
Product detail
Original: Jiangsu, China
Certification: ISO9001, ISO14001, etc.
Price: Negotiable
Material: SUS304
Voltage: 380V 50Hz, the voltage can be as local demand
Payment term: TT, LC
Delivery date: Negotiable
Packing: export standard
Market: Middle East/ Africa/Asia/South America/Europe/North America
Warranty: 1 year
MOQ: 1 set
Equipment characteristics

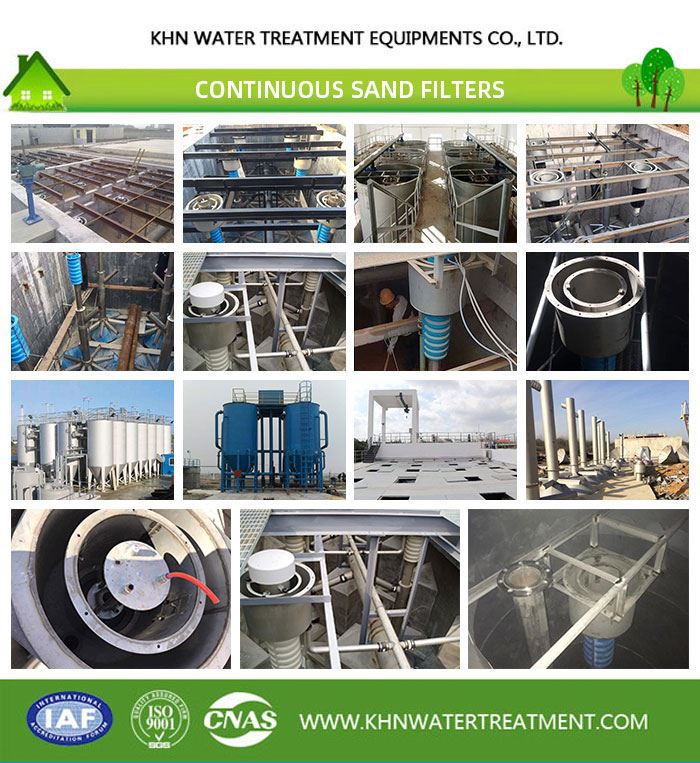

The entire system uses upflow fluid bed filtration and a single homogeneous quartz sand filter material, while adding air sand sand washing process. The raw water enters the inside of the filter through the water inlet pipe, and is evenly distributed by the water distributor, and then the filter material layer is circulated in the reverse direction and discharged outside. In this process, the raw water is filtered, and the content of pollutants in the water decreases; at the same time, the content of pollutants in the quartz sand filter material increases, and the content of pollutants in the lower filter material layer is higher than that in the upper filter material. The air lift pump located in the center of the filter lifts the bottom quartz sand filter material to the sand scrubber at the top of the filter under the action of the air compressor. After cleaning, the sand particles are returned to the filter bed, and the pollutants generated by the cleaning are discharged outside. Our Advantages
A. Strict Physical/Chemical testing procedures: meeting the requirements of the product design and process, providing reliable testing data.
B. Short Delivery time: If one container 15-20 days. We also stock some standard-sized tubes and rods, if you need 3-5 pcs, we can delivery soon.
C. Safe packing: anti-rust oil be spread on tubes and rods before shipping, plastic caps on tube ends to protect inside surface, each rod be protected with cardboard tube. Finally be packed with seaworthy package or in wooden case.
D. Best after-sale service: Over 60% products are sold to the Southeast Asia, Middle East and Europe, and all products are trusted by domestic and foreign customers.
Working principle
The impurities are discharged through the cleaning water outlet, and the clean sand is returned to the sand by its own weight Bed to achieve continuous filtration. With the development of industry, the pollution of water resources is becoming more and more serious, and filtering equipment has emerged. The continuous flow sand filter is one of them. It is mainly used in the fields that require advanced treatment of industrial water, drinking water, sewage and reclaimed water. It is highly possible to clean the waste water, so that users can rest assured.
Continuous sand filter, also known as active sand filter, is a filter that integrates coagulation, clarification and filtration. It does not need to be back-washed. It uses single-stage filter material, no gradation, and no uneven hydraulic distribution. Problems such as primary filtrate; no need for backwash pumps and electric and pneumatic valves for switching between shutdowns; no need for a separate coagulation and clarification tank, and no need for mechanical equipment for coagulation and clarification. Therefore, the footprint is more compact and the operating costs are more economical.
