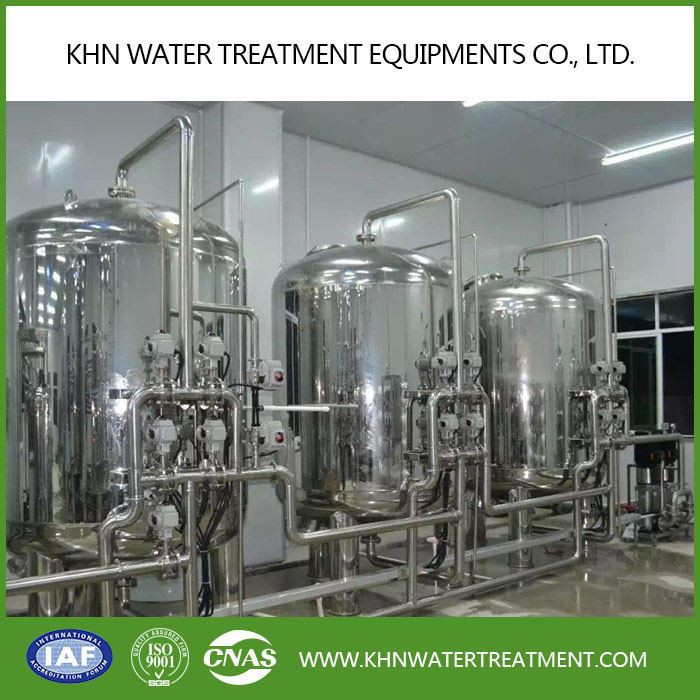

Ion Exchanger
Ion exchangeris a water treatment equipment which removes electrolyte ions from water by using the selectivity and equilibrium reaction principle of anion and cation exchange resin.
Send InquiryIon exchanger Introduction
Ion exchangeris a water treatment equipment which removes electrolyte ions from water by using the selectivity and equilibrium reaction principle of anion and cation exchange resin. It is widely used in water treatment, especially in the production of high purity water. Different combinations of cation exchange column, anion exchange column and mixed ion exchange column can make the water quality meet higher requirements.
Technical parameters
Model | KIE-1000/15 | KIE -1250/25 | KIE -1600/40 | KIE -1800/50 | ||||||||
Diameter | Ø1000 | Ø1250 | Ø1600 | Ø1800 | ||||||||
Resin height | 1600 | 2000 | 2500 | 1600 | 2000 | 2500 | 1600 | 2000 | 2500 | 1600 | 2000 | 2500 |
Capacity(t/h) | 15 | 25 | 40 | 50 | ||||||||
Resin volume | 1.26 | 1.57 | 1.96 | 1.96 | 2.45 | 3.06 | 3.2 | 4 | 5 | 4.07 | 5.1 | 6.36 |
Equipment weight | 1655 | 1789 | 1908 | 1988 | 2180 | 2362 | 2710 | 2932 | 3180 | 3520 | 3760 | 4060 |
Operating load | 5094 | 5398 | 5896 | 7540 | 8520 | 9640 | 11630 | 13100 | 14800 | 18058 | 19080 | 20672 |
Model | KIE -2000/65 | KIE -2200/75 | KIE -2500/100 | KIE -3200/160 | ||||||||
Diameter | Ø2000 | Ø2200 | Ø2500 | Ø3200 | ||||||||
Resin height | 1600 | 2000 | 2500 | 1600 | 2000 | 2500 | 1600 | 2000 | 2500 | 1600 | 1800 | 2500 |
Capacity(t/h) | 65 | 75 | 100 | 160 | ||||||||
Resin volume | 5.02 | 6.28 | 7.8 | 6.08 | 7.6 | 9.5 | 7.85 | 9.8 | 12.27 | 12.86 | 16.08 | 0.16 |
Equipment weight | 3775 | 4019 | 4495 | 5330 | 5536 | 6409 | 6084 | 6574 | 7169 | 9120 | 9864 | 10775 |
Operating load | 18350 | 20590 | 23530 | 27656 | 29210 | 31150 | 29220 | 32650 | 36920 | 49310 | 54850 | 61860 |
Product detail
Original: Jiangsu, China
Certification: ISO9001, ISO14001, etc.
Material: FRP/Q235
Voltage: 380V 50Hz, the voltage can be as local demand
Payment term: TT, LC
Market: Middle East/ Africa/Asia/South America/Europe/North America
Warranty: 1 year
MOQ: 1 set
Equipment characteristics
Working temperature: 5℃～40℃(special temperature can be customized)
Regeneration concentration: HCL or NaOH 3%-4%
Work pressure: 0.1Mpa~0.6Mpa
Single unit flow: 0.5m3/h - 160m3/h
Filtration speed: 15m3/h ~30m3/h.
Manual operation/automatic operation
Regeneration flow rate: 15m3/h·㎡～30 m3/h·㎡
Cylinder material: 316L, 304, Q235 Lining or FRP
Ion exchangers are divided into cation exchangers, anion exchangers and mixed ion exchangers.
Water softener is essentially a cation exchanger. Based on the principle of displacement reaction, Ca2+, Mg2+ ions in the effluent are replaced by Na+ ions to achieve the purpose of hard water softening.
Ion exchanger is mainly used in boiler, thermal power station, chemical industry, light industry, textile, medicine, biological, electronic, atomic energy and pure water treatment, industrial production of deionized water preparation occasions, can also be used for decolorization and purification of food and drugs, recovery of precious metals, chemical raw materials, electroplating wastewater treatment, etc.
