Send Inquiry1.Single hole membrane diffuser Introduction
Our product’s main components are: single hole membrane diffuser, upper pipe clip, lower pipe clip, left fixed clip, right fixed clip.
2.Technical Data
Air volume range: 0.20 ~ 0.45m3/h
Design ventilation: 0.3 m3/h
Installation density: 36~49 /m2
Single hole diameter: 1 mm
The diameter of single hole membrane is: 33mm
Specifications for air piping: 25 mm
The oxygen exchange rate of air is above 30%.
Oxygenation capacity: > 0.2kg/h
Single hole membrane aerator resistance loss: less than 2.5KPa
Installation height: 100~200 mm
3、Product detail
Original: Jiangsu, China
Certification: ISO9001, ISO14001, etc.
Price: Negotiable
Payment term: TT, LC
Delivery date: Negotiable
Packing: export standard
Market: Middle East/ Africa/Asia/South America/Europe/North America
Warranty: 1 year
MOQ: 1 set
4、Application
The assembled single-hole membrane aerator is installed on the filter brick and pebble layer. When the diaphragm works, it does not need to worry about the pressure of the filter material and affects its free expansion. It can safely provide microorganisms attached to the filter material. Oxygen can operate continuously or intermittently.
EPDM diaphragm diffuser with low plasticizer used in municipal wastewater containing industrial waste and industrial wastewater containing small amounts of grease and hydrocarbons. The maximum temperature is allowed 80 degrees centigrade.
Silicone rubber diaphragm is suitable for industrial wastewater containing more grease and hydrocarbons. The maximum temperature is allowed 100 degrees centigrade.
5.Equipment characteristics
According to the latest biological filter aeration product developed after many innovations and improvements of similar products in the market, compared with other similar products, the main innovation of this product is that the aeration branch pipe is not the traditional segmental and aerator assembly, but the use of a single super-long continuous straight pipe above the direct opening assembly aerator. Therefore, this new type of single-hole membrane aerator has the following remarkable advantages compared with similar products on the conventional market:
It can ensure the strength and stability of the piping system, and better adapt to the stack pressure of the filter material.
It can effectively reduce air resistance in piping system. Easy and quick installation.
6.Material and service life
Upper and lower pipe clamps: ABS (white, no recycling).
Left and right fixing card: ABS (white, no return).
Single hole membrane: EPDM or silicone rubber.
Adjusting bracket: ABS (white, no recycling)
Service life: not less than 10 years Experience and markets.
7.Our Advantages
a. Extensive production experience: we are specialized in diffuser with an experience of 10 years.

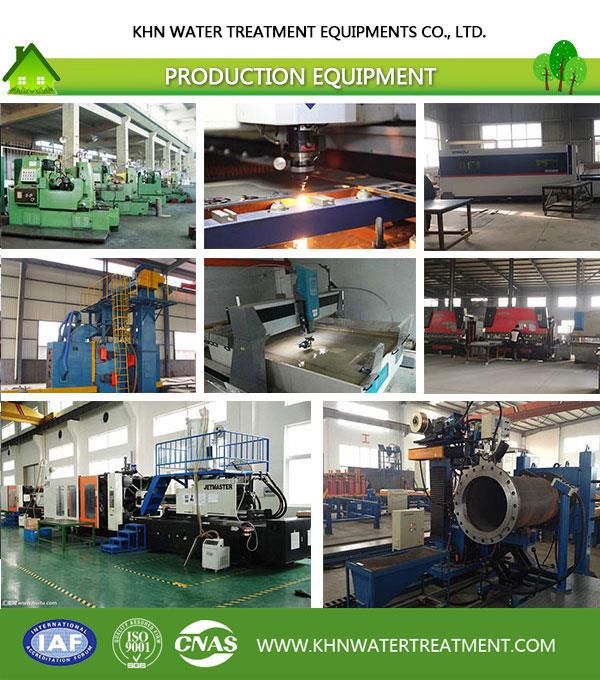

b. Complete production facilities: owning precision centerless grinding machine, straightening machine, fine polishing machine, precision lathe, milling and drilling machine, roller press and other advanced equipments. Our technicians will do regular scheduled maintenance on these machines to guarantee them work well.
