Sludge Scraper with Suction Arm
1.The Sludge Scraper with Suction Arm adopts the peripheral drive, and the sewage is flowing from the inlet pipe of the center of the pool.
1.The Sludge Scraper with Suction Arm adopts the peripheral drive, and the sewage is flowing from the inlet pipe of the center of the pool.
2.After the steady flow is spread, the sludge is uniformly distributed to the surrounding area. The sludge is suspended and deposited on the bottom of the pool.
List and material
Supply Checklist | Material |
Work bridge, walk plate, end beam | quality aluminum alloy/stainless steel |
Center steel frame and arm frame | Stainless steel 0Cr19Ni9(304) |
Inlet pipe, guide tube, dredge pipe, drain groove | Stainless steel 0Cr19Ni9(304) |
Weir plate and scum baffle | Stainless steel 0Cr19Ni9(304) |
Skimming board, bracket | Stainless steel 0Cr19Ni9(304) |
Suction pipe and suction nozzle | Stainless steel 0Cr19Ni9(304) |
Collection of clay | Stainless steel 0Cr19Ni9(304) |
Nuts and washers | Stainless steel 0Cr19Ni9(304) |
Bolt and foundation bolts | Stainless steel 2Cr13 |
Product detail
Original: Jiangsu, China
Certification: ISO9001, ISO14001, etc.
Price: Negotiable
Material: SUS304/Q235
Voltage: 380V 50Hz, the voltage can be as local demand
Payment term: TT, LC
Delivery date: Negotiable
Packing: export standard
Market: Middle East/ Africa/Asia/South America/Europe/North America
Warranty: 1 year
MOQ: 1 set
Supply range
The product is suitable for the central flow and the surrounding water outlet of the sedimentation tank. The whole machine should include: driving device (including motor, reducer and overload protection system), working bridge, central inlet pipe column (not contained in the branch factory of the Buddha), central diversion tube (not contained in the Buddhist Temple Branch), central discharge pipe, water weir plate, slag retaining baffle, scum removal device, mud suction pipe and mud collecting plate, mud suction pipe arm frame and collection. Mud tank, mud discharge control valve, on site control box and accessories required for safe and effective operation.
The driving device drives the working bridge to rotate along the surrounding area, and drives the mud suction pipe system and the mud scraper to turn and scrape. After scraping the sludge from the sludge, the mud suction pipe is drawn from the suction pipe to the center mud tank by the static water pressure in the pool, and then through the central sludge discharge pipe, the scum on the surface of the water is introduced into the discharge tank through the rotary skimming device, and the supernatant is discharged through the overflow of the triangle water weir into the outlet.
Application

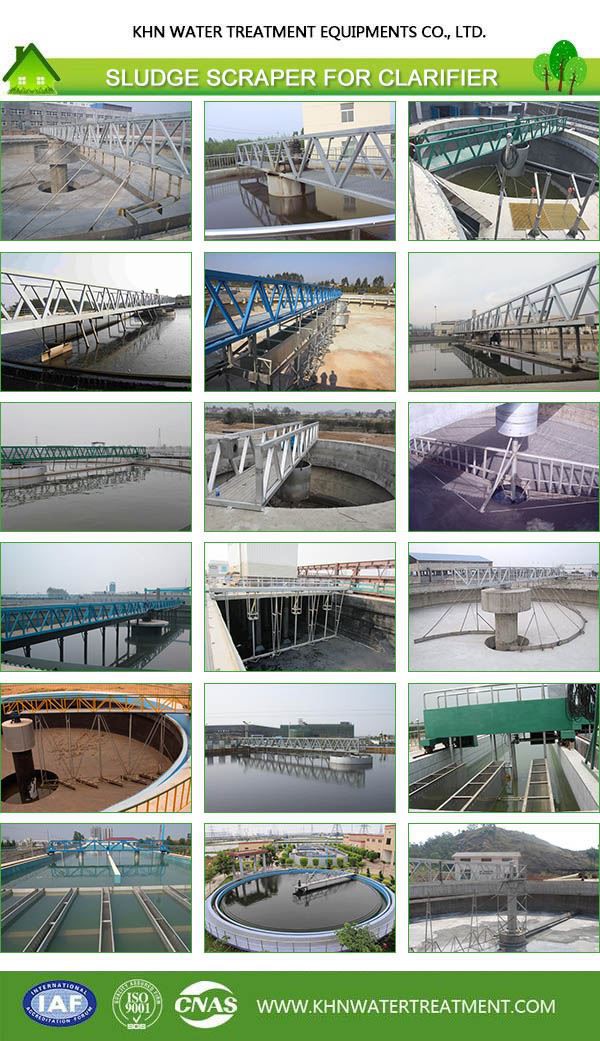

It is applied to the radial flow sedimentation tank in the wastewater treatment plant, the water works and the industrial waste water treatment. The sludge deposited at the bottom of the tank is scraped to the mud pit at the bottom of the pool, and the scum on the pool surface is skimmed to the pipe type slag discharge bucket.
Equipment characteristics
1. The product has reasonable structure and light weight.
2. The underwater parts are made of stainless steel for easy maintenance and long service life.
3. The electrical control can realize manual, timing, PLC control and communication with PLC according to user requirements.
4. The product is easy to maintain and low in operation cost.
