SBR Based Sewage Treatment Plant

1.The SBR is the abbreviation of Sequencing Batch Reaotor, also known as intermittent aeration.
2.It's main structure is a batch sequence reaction pool. The wastewater has completed the process of reaction, precipitation, drainage and removal of residual sludge in the...

Send Inquiry
Product Introduction

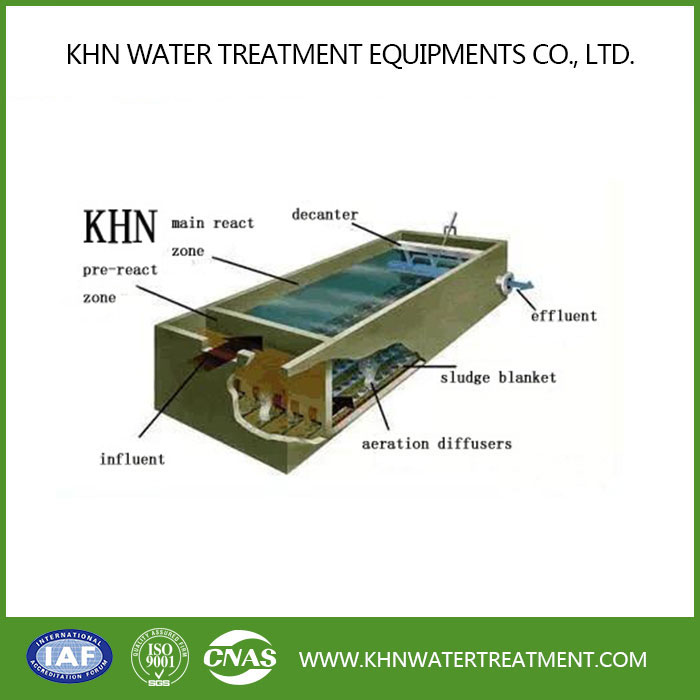

1.The SBR is the abbreviation of Sequencing Batch Reaotor, also known as intermittent aeration.

2.It's main structure is a batch sequence reaction pool. The wastewater has completed the process of reaction, precipitation, drainage and removal of residual sludge in the reaction pool, so that the treatment process is greatly simplified.

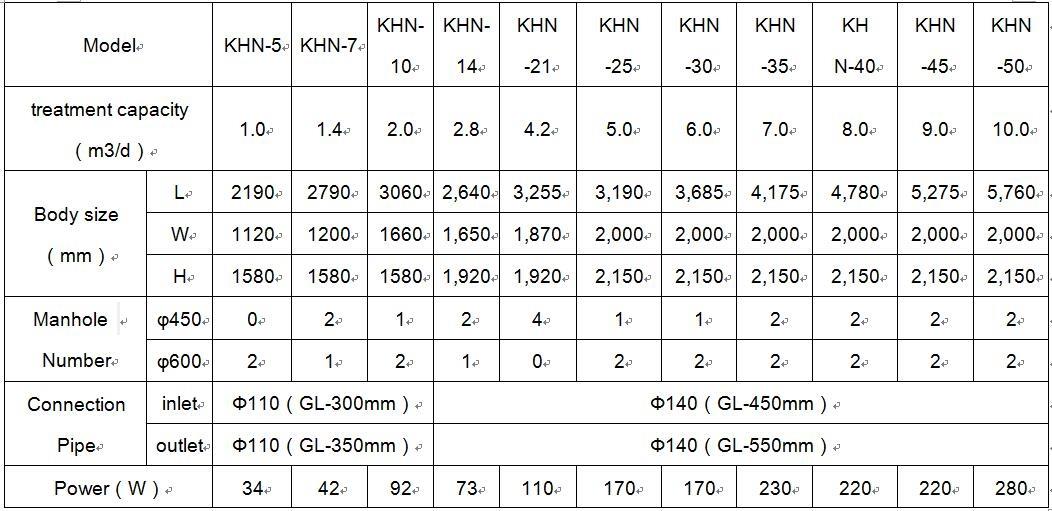

Technical Data


Product detail

Original: Jiangsu, China

Certification: ISO9001, ISO14001, etc.

Price: Negotiable

Material: SUS304/Q235/PP/FRP

Voltage: 380V 50Hz, the voltage can be as local demand

Payment term: TT, LC

Delivery date: Negotiable

Packing: export standard

Market: Middle East/ Africa/Asia/South America/Europe/North America

Warranty: 1 year

MOQ: 1 set



SBR was developed as early as 1914. However, due to the cumbersome management of manual operation, backward monitoring methods and easy plugging of aerator, it is difficult to popularize application. With the development of science and technology, the above problems have been solved one after another. Now there are not clogged aerator and on-line monitoring instrument, especially the development of automation technology, the automatic operation of sewage treatment process has become possible. The SBR has attracted extensive attention with its unique advantages, and it has been popularized rapidly in recent years. It has been improved and perfected, making it a popular technology in the world's sewage treatment technology.


Treatment and reuse of organic waste water in small and medium scale industries such as residential areas, villages, towns, offices, offices, shopping malls, hotels, restaurants, sanatorium, institutions, schools, troops, hospitals, highways, railways, factories, mines, tourist attractions and so on, and similar slaughterhouses, aquatic products processing and food.

Equipment characteristics

1. The product replaced the regulating pool, the initial sedimentation tank, the aeration pool and the two sedimentation tank in the traditional method and other transformation methods with a group of reaction pools. The whole structure is compact and simple, without complex pipeline transmission, the system operation is simple and more flexible.

2.The filamentous bacteria which are easy to produce sludge bulking in activated sludge method are effectively inhibited in it. Sludge bulking is one of the most common and difficult problems in other activated sludge processes.

3.Under normal conditions, it can achieve nitrification, denitrification and phosphorus removal without adding chemical agents.

4.The stability of process treatment is increased: the product has the effect of water balance and the effect of preventing continuous influent on water quality, especially in the treatment of high concentration industrial wastewater by continuous aeration, which strengthens the degradation of the refractory organic matter and reduces the operation cycle relatively. Continuous aeration by SBR Based Sewage Treatment Plant also makes the whole system close to complete mixing, which is more conducive to the elimination of adverse effects caused by high concentration of toxic substances in high concentration industrial waste water or excessive accumulation of COD concentration.

5. It improves the utilization ratio of the pool capacity: for the sewage treatment structures which are built in the aeration pool and the two sink pool, the aeration volume ratio can be improved as far as possible with the retention of precipitation separation effect, and the product is used to make the aeration volume ratio higher.

6.Improve the utilization of equipment: because it is continuous influent, so no order inlet valve and automatic control device are not needed: it is used to continuously aerate, reduce the aeration intensity of the whole system, improve the utilization rate of aeration device, and reduce the rated air volume and work rate of the blower.

7. The flexibility of the system is increased: the product can adjust the working state and operation cycle of the sequencing according to the changes of the intake, water and water quality. At the same time, it can also adjust the aeration time and create anoxic or anaerobic environment according to the requirement of denitrification and phosphorus removal.

8. It adopts stable automation control and the most advanced monitoring instruments and equipment in the world to ensure water quality.


Our Advantages

a. Extensive production experience: we are specialized in SBR Based Sewage Treatment Plant with an experience of 10 years.

b. Complete production facilities: owning precision centerless grinding machine, straightening machine, fine polishing machine, precision lathe, milling and drilling machine, roller press and other advanced equipments. Our technicians will do regular scheduled maintenance on these machines to guarantee them work well.

c. High quality raw material: we mainly choose raw material from big steel factory, such as TPCO, BAO STEEL, SHA STEEL, which are best and largest raw material manufacturer in China.

d. Strict Physical/Chemical testing procedures: meeting the requirements of the product design and process, providing reliable testing data.

e. Short Delivery time: If one container 15-20 days. We also stock some standard-sized tubes and rods, if you need 3-5 pcs, we can delivery soon.

f. Safe packing: anti-rust oil be spread on tubes and rods before shipping, plastic caps on tube ends to protect inside surface, each rod be protected with cardboard tube. Finally be packed with seaworthy package or in wooden case.

g. Best after-sale service: Over 60% products are sold to the Southeast Asia, Middle East and Europe, and all products are trusted by domestic and foreign customers.
