Disk Water Filter
1.Thin plastic overlays of the disc filter with a particular color are marked with a large number of grooves on both sides.
2.A dish of the same pattern of lamination is pressed into the specially designed inner braces. When the spring and liquid pressure are pressed,...
1.Thin plastic overlays of the disc filter with a particular color are marked with a large number of grooves on both sides.
2.A dish of the same pattern of lamination is pressed into the specially designed inner braces. When the spring and liquid pressure are pressed, the groove intersecting between the sheets is crossed to produce a deep filter unit with a unique filter channel.
3.This filter unit is packed in a super performance engineering plastic filter to form a Disk Water Filter.

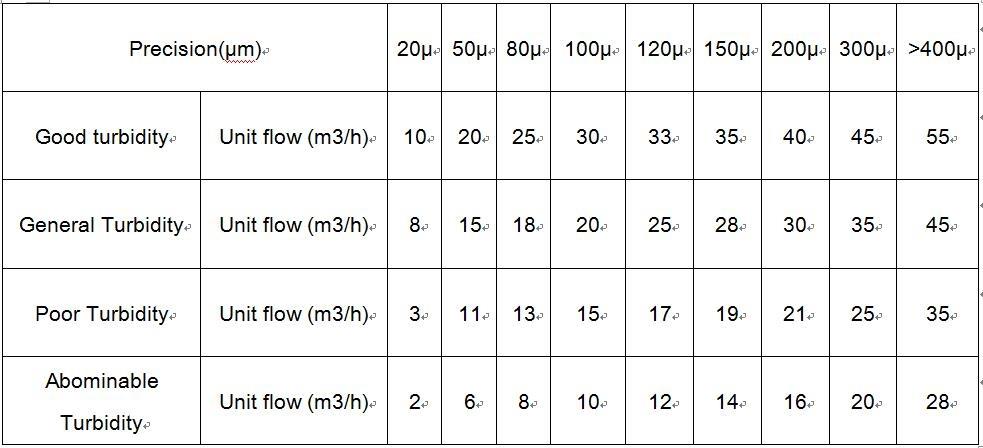

Technical parameters
Product detail
Original: Jiangsu, China
Certification: ISO9001, ISO14001, etc.
Price: Negotiable
Material: SUS304/Plastic
Voltage: 380V 50Hz, the voltage can be as local demand
Payment term: TT, LC
Delivery date: Negotiable
Packing: export standard
Market: Middle East/ Africa/Asia/South America/Europe/North America
Warranty: 1 year
MOQ: 1 set

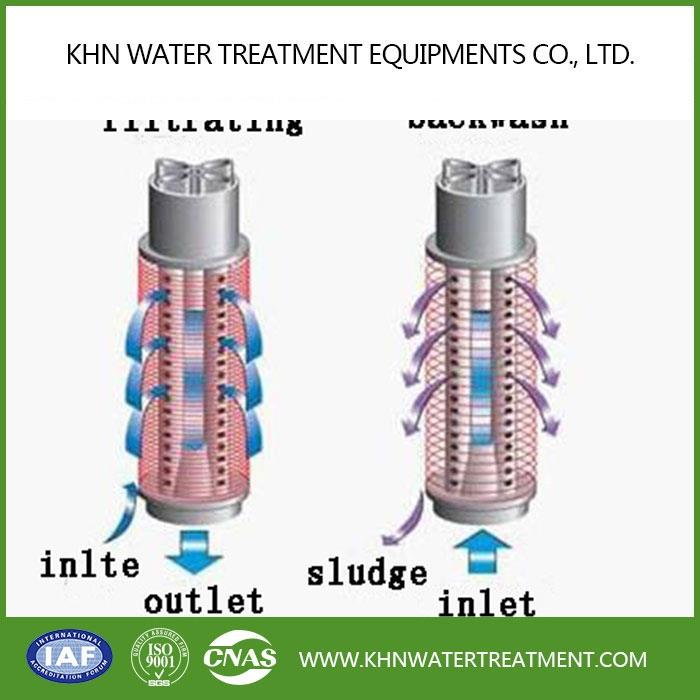

Working principle
During filtration, the filter lamination is pressed by the spring and the fluid pressure. The greater the pressure difference, the stronger the compression force. The self-locking and efficient filtering is guaranteed. The liquid flows from the outer edge of the lamination through the groove to the inner edge of the lamination, passing through 18~32 filtering points, thus forming a unique deep layer filtration. After the filtration is finished, the laminations are loosened manually or hydraulically for manual cleaning or automatic backwashing.
Application
The drip irrigation system in the greenhouse and the drip irrigation system in the field are connected with the fertilizer tank to form an integrated irrigation mode with water and fertilizer. The installation position is usually placed behind the gravel filter in combination with the performance and filtering method of it. It is not suitable for the first filter, because the river and the lake water will be doped with a lot of strip and floc impurities, such impurities will cause the equipment to plug the backwash is not clean so that it will frequently open the back washing function.
Equipment characteristics
Disk Water Filter has many advantages, such as good filtration effect, convenient installation, small occupation area and long life. It is one of the commonly used filters in irrigation system.
The filter effect is stable.
Our product is easy to operate and easy to maintain.
Disk Water Filter deep filtration, excellent pollution control capacity;
It has low running cost, reliable performance and long service life.
Experience and markets
KHN is professional Disk Water Filter manufacturer. Products are well sailed all over the world, got many compliments from customers.
Hot Tags: disk water filter, China, suppliers, manufacturers, factory, customized, price, OEM
